SC500G-PV Solar Pump Inverter

● High-Efficiency MPPT and CVT functions.
● Support Solar Panel Input 900VDC.
● Available for AC&DC Hybrid Input at the same time.
● Support online remote monitoring and control through GPRS remote monitoring system.
● Power range(1PH/3PH 220VAC/450VDC):0.75KW~160KW.
● Power range(3PH 380~460VAC/900VDC):0.75KW~630KW.

联系我们

产品内容规格

SC500G-PV Series Solar Pump Inverter is a product with high-efficiency MPPT and CVT functions, Withstand solar voltage 900VDC, covering all water pump power segments. And also support online remote monitoring and control through GPRS remote monitoring system. It is a reliable, stable and cost-effective product.

1).Technical Specifications：

Items	Terminal marking	Terminal name	Terminal function description
Power supply	24V	24V Power supply	Provide 24V±10% power supply to the outside, the maximum output current is 150mA. It is generally used as a switching input and output power supply or an external sensor power supply.
Power supply	DCM	Common terminal
Digital input terminal	MI1	Forward function	Terminal characteristic parameters: 1. Internal impedance: 2.4kΩ 2. Accept 9~30V voltage input 3. Maximum input frequency: 100kHz MI1: external terminal control, the default terminal forward. MI2: By default, it is connected to the water level switch of the normally open contact (high water level switch). MI3: Water level switch connected to normally closed contact by default (low water level switch). MI4: Hybrid mode input, used for AC&DC input at the same time.
	MI2	Full water warning
	MI3	Empty water warning
	MI4	Hybrid mode
Communication terminal	RS485+ RS485-	485 communication	485 communication terminal, using ModBus protocol.
Relay output terminal	TA1	Relay 1 normally open contact	1. Contact capacity: 3A/AC250V, 1A/DC30V 2. Cannot be used as high-frequency switch output (must pay attention) In the application of automatic switching of AC/DC power supply, the AC input contactor coil is controlled by the normally closed contact of the relay.
	TB1	Relay 1 common terminal
	TC1	Relay 1 normally closed contact
	TA2	Relay 2 normally open contact
	TB2	Relay 2 common terminal
	TC2	Relay 2 normally closed contact

2).Product Advantages：

Items	SC500G-PV Series high-performance solar pump inverter
Thermal simulation	Optimize the design with thermal simulation software. The heat dissipation performance is better, and the temperature rise is greatly reduced.
Independent duct	Independent air duct design. The inverter cavity is isolated from the external environment to improve reliability.

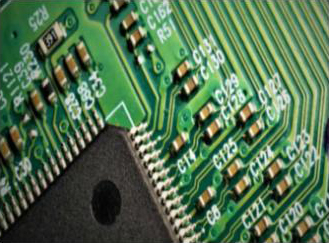

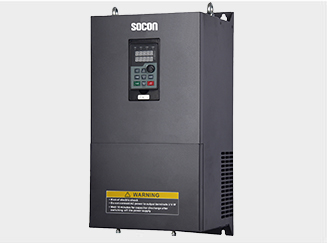

Optimized hardware design	New hardware design ideas. The selection of components is more scientific. Component layout is more reasonable. Anti-interference performance is better.
Narrow body structure	The whole series adopts narrow body structure design. High power density. The installation space is smaller.
Built-in Braking Unit	0.75-37kW Standard Built-In. 45-110kW Optional Built-In.
Perfect fail-safe	Excellent fail-safe function., such as underload protection, water full warning, water empty warning, low speed protection, overvoltage and overcurrent protection, etc.

3).Smart Agriculture Internet IOT platform:

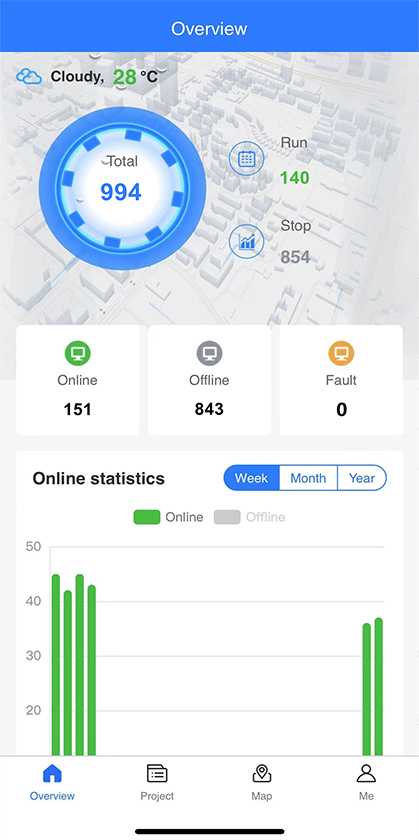

Mobile APP Display

Technical Indicators

Mobile APP display application project

1.Support GPRS positioning, It is convenient for users to check the location of system items.

2.WIFI data connection, Users can use the mobile APP can log in to the settings WIFI information.

3.Offline data storage and checking, data information is kept for 5 years.

4.The big data platform and mobile APP display the most concerned data such as solar panel input power and water flow.

5.Automatic identification of APN when power on, various remote data analysis equipment, routing one-click connection.
6.Timing start function, users can set to execute once/every day/working day (Monday to Friday)/weekend/custom.

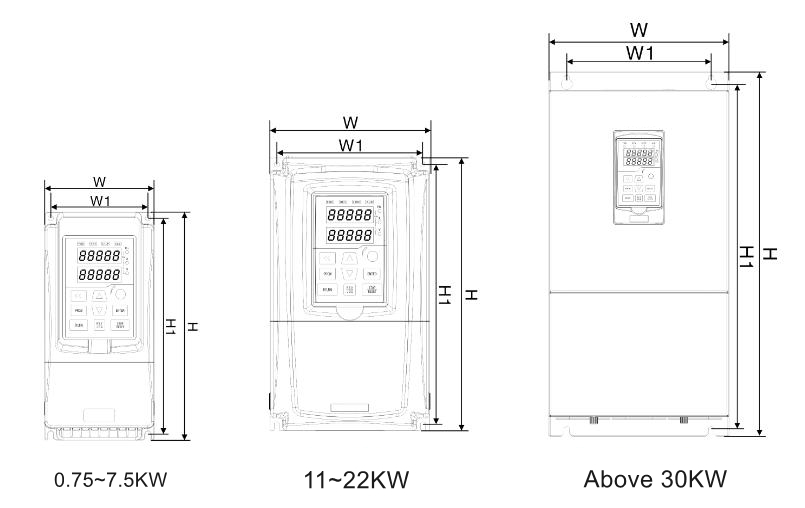

1).Appearance and Dimension Drawing：

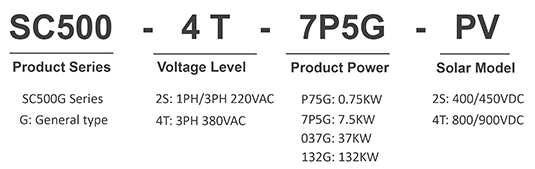

2). Model Definition：

3). Product Selection Table：

Product Mode			-	Product Size
Model	Rated Output Power (kW)	Rated Output Current (A)		H(mm)	W(mm)	D(mm)	H1(mm)	W1(mm)	Aperture(mm)
SC500G-PV Series 2S PV Inverter, DC Input: 400VDC/450VDC
SC500-2S-P75G-PV	0.75	4.0	-	187	90	133	177	80	4.5
SC500-2S-1P5G-PV	1.5	7.0
SC500-2S-2P2G-PV	2.2	9.6
SC500-2S-4P0G-PV	4.0	17		247	130	162	236.5	115	5.0
SC500-2S-5P5G-PV	5.5	25		272	160	201	259	146	5.2
SC500-2S-7P5G-PV	7.5	32
SC500-2S-011G-PV	11	45		313	211	205	299	146	5.2
SC500-2S-015G-PV	15	60		418	252	206.9	399	20	9.0
SC500-2S-018G-PV	18.5	75
SC500-2S-022G-PV	22	90		603	299	276.7	581	240	9.0
SC500-2S-030G-PV	30	110
SC500-2S-037G-PV	37	152		643	338	312	619	280	11
SC500-2S-045G-PV	45	176
SC500-2S-055G-PV	55	210
SC500-2S-075G-PV	75	304		1126	410	383.7	776	320	12
SC500-2S-093G-PV	93	340
SC500-2S-110G-PV	110	426		1472	650	430.2	1046.8	520	13
SC500-2S-132G-PV	132	520
SC500-2S-160G-PV	160	585
SC500G-PV Series 4T PV Inverter, DC Input: 800VDC/900VDC
SC500-4T-P75G-PV	0.75	2.8	-	187	90	133	177	80	4.5
SC500-4T-1P5G-PV	1.5	4.4
SC500-4T-2P2G-PV	2.2	5.8
SC500-4T-4P0G-PV	4.0	10		207	100	142	197	90	4.5
SC500-4T-5P5G-PV	5.5	13		247	130	162	236.5	115	5.0
SC500-4T-7P5G-PV	7.5	17
SC500-4T-011G-PV	11	25		272	160	201	259	146	5.2
SC500-4T-015G-PV	15	32
SC500-4T-018G-PV	18.5	37		313	211	205	299	196	6.5
SC500-4T-022G-PV	22	45
SC500-4T-030G-PV	30	60		418	252	206.9	399	201	9.0
SC500-4T-037G-PV	37	75
SC500-4T-045G-PV	45	90		603	299	276.7	581	240	9.0
SC500-4T-055G-PV	55	110
SC500-4T-075G-PV	75	152		643	338	312	619	280	11
SC500-4T-093G-PV	93	176
SC500-4T-110G-PV	110	210
SC500-4T-132G-PV	132	253		1126	410	383.7	776	320	12
SC500-4T-160G-PV	160	304
SC500-4T-185G-PV	185	350
SC500-4T-200G-PV	200	380
SC500-4T-250G-PV	250	465		1472	650	430.2	1046.8	520	13
SC500-4T-280G-PV	280	520
SC500-4T-315G-PV	315	585
