Product Description

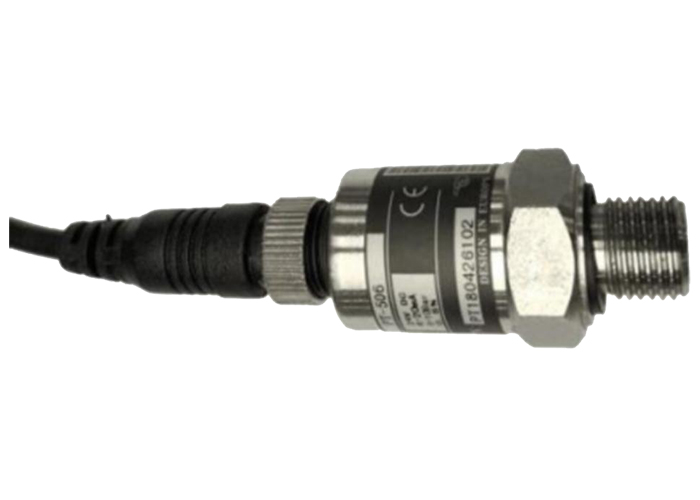

PT-506 Pressure Sensor is a special product developed by our company accrding to the needs of the water treatment industry. It is widely used in frequency inverter, complete sets of water supply Vfd, air conditioning equipment, professional waterproof hammer impact. Good electrical performance and long-term performance, making it a similar industry. The first choice, and can directly replace a variety of similar imported products.

Main features

Advanced sensor core is adopted, with high cost performance; Various pressure ranges and electrical outputs; Compact structure and low cost; Good electrical performance; Excellent waterproof hammer design; Good long-term stability.

Technical Parameters

Pressure range: 0~1Bar~100Bar

Comprehensive accuracy: 0.5%

Overload pressure: 2 times

Operating temperature: -30°c~85°c

Output signal: 0.5~4.5VDC, 0~10VDC, 4~20mA(2-wire/3-wire) selectable

Power supply voltage: 3.3VDC, 5VDC, 10~36VDC

Temperature drift: ±0.03%

Protection grade: IP67

Main material: 304 stainless steel

Process connection: G1/4, 1/4NPT, G1/4 other customized connection methods
