Product description

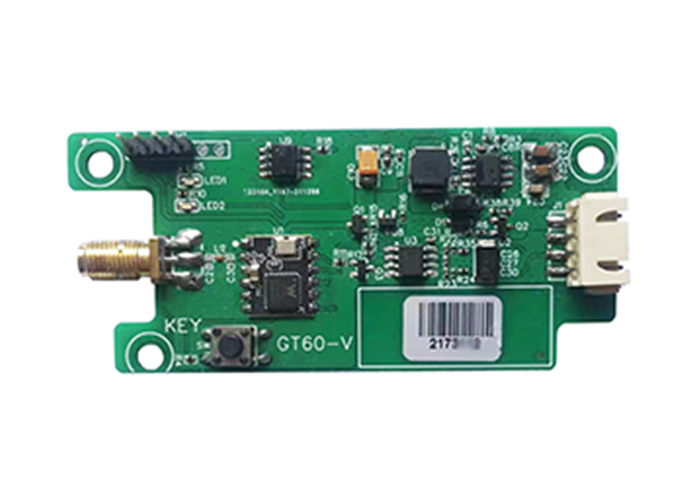

GT60-V is a wireless data transmission terminal device based on 2.4G WiFi network, which provides a fully transparent data channel and can realize remote, wireless and networked communication methods conveniently and quickly. Make it easy for your device to connect wirelessly to the Internet.

GT60-V has many advantages such as strong network compatibility, flexible and fast networking, and low operating cost. It can be widely used in power systems, industrial monitoring, traffic management, meteorology, water treatment, environmental monitoring, financial securities, coal mines, petroleum, new energy and other industries.

Technical Parameters

1.Frequency band：2.4~2.43835GHz；Support GB15629.11-2006, IEEE802.11 b/g/e/i/d/k/r/s/w/n

2.Wifi encryption method：WPA2

3.Transmission rate：2/5.5/11Mbps

4.Support network protocol：TCP, UDP

5.Antenna interface：50Ω SMA female

6.Serial port level type：RS485

7.Serial parameters：Baud rate: 1200~115200bps； Data bits: 8； Parity: Odd, Even；stop bits: 1

8.Power：DC: 9~24V

9.Power Consumption：Communication:<60mA@24V；Idle: <35mA@24V

10.Working temperature：-40~85℃

11.Protection class：IP54

12.Electromagnetic compatibility performance: electrostatic discharge reactance interference test level 3.

13.Radio frequency electromagnetic field radiation: anti-interference test level: Level 3.

Product characteristics

1.Hardware watchdog design to ensure the system is stable and reliable;

2.Comes with a disconnection reconnection mechanism to ensure that the device is permanently online;

3.RS485 built-in 15kV ESD protection;

4.Embedded standard TCP/IP protocol stack, supporting transparent data transmission;

5.Support data center dynamic domain name, fixed IP, fixed domain name network access;

6.Support virtual private network (VPN private network, need to apply to the network operator);

7.Support the automatic collection function of Modbus registers, which can collect up to 128 registers at a time;

8.Support local and remote graphical interface parameter configuration and maintenance;

9.Support up to 8 custom time period start-stop settings, users can use this function to set the start-stop time period of the corresponding equipment;

IOT Cloud download, Support Android and Apple system
A complete set of IOT modules, including IOT card, Antenna, and Data cable.
