一、Project Introduction

Project location: Sudan

Purpose: Agricultural irrigation

Water source: Groundwater

Requiredments: The solar water pump system project is located in Sudan, where it is not convenient to use the power grid, and agricultural irrigation requires a lot of water, so the water supply is inconvenient, so it is suitable to use solar water supply. Therefore, users use SOCON's photovoltaic water pumps to drive irrigation systems to solve water supply problems.

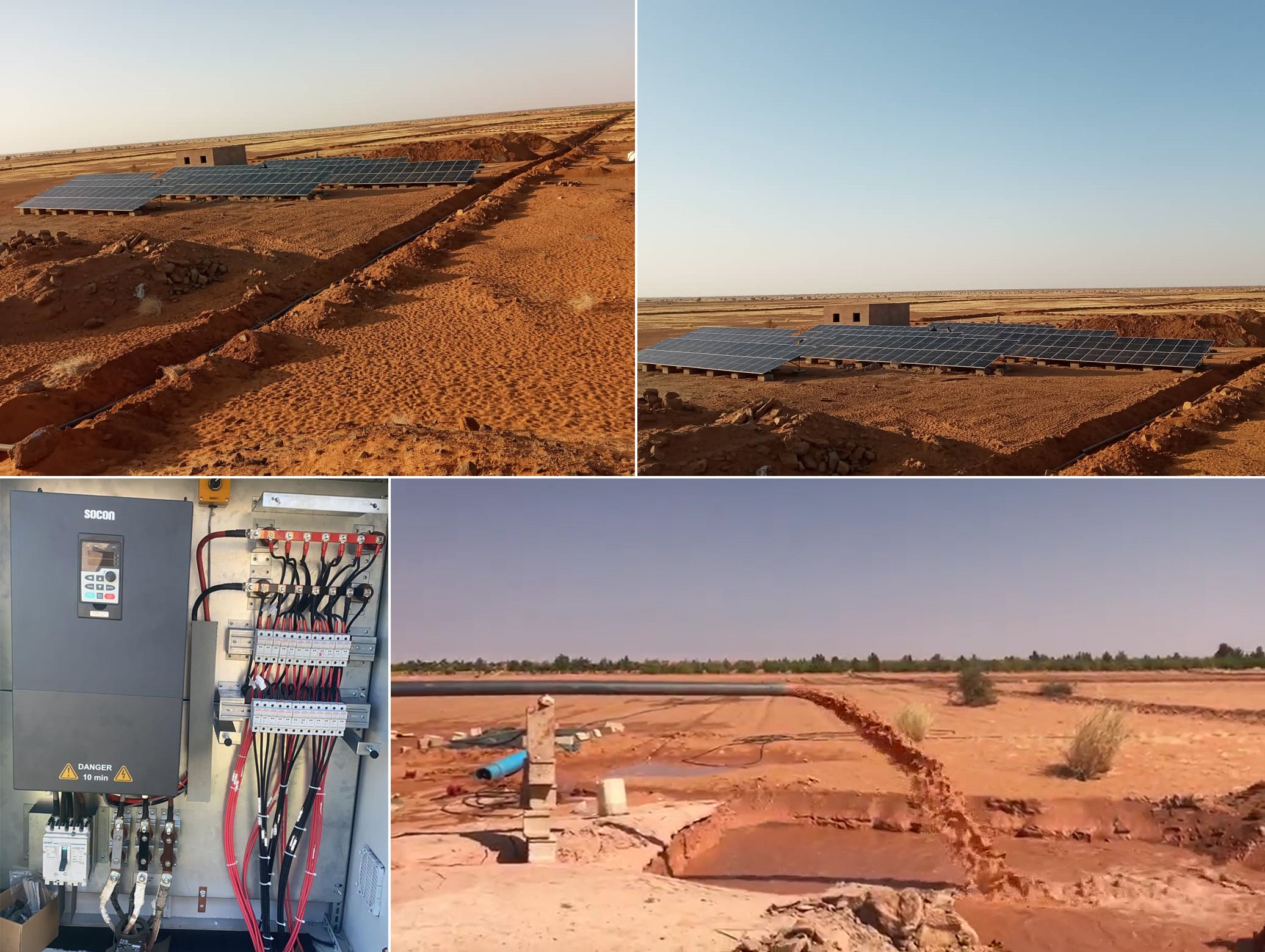

二、On-Site Project pictures

三、Solution

Drive Model: SC500-4T-075G-PV

Rated Power/Current: 75KW/152A

Rated Output frequency: 0~50HZ

Solar Water Pump Power: 75KW/100HP

Rated Output: 380VAC 3 Phase

Solar Array: 288PCS(16PCS in series*18 groups in parallel - 380W polysilicon solar panels)

Total Power: 109.44KW

四、Project Effect

The user uses 109.44KW solar modules with 75KW solar water pump inverter and solar water pump. The configured power is relatively sufficient. It starts working at 6:30 in the morning and has sufficient water supply until 6:00 pm. The inverter operates fully automatically without operation, which is convenient for users to use.
