一、Project Introduction

Project location: South Africa

Purpose: Water Tower

Water source: Groundwater

Requiredments: Mainly solve the water problems of users' crops and farms.  The water tower is located on a high ground and usually requires AC power to pump water. Due to the inconvenience of using electricity, a solar water pumping system was installed with a SOCON solar pump inverter.

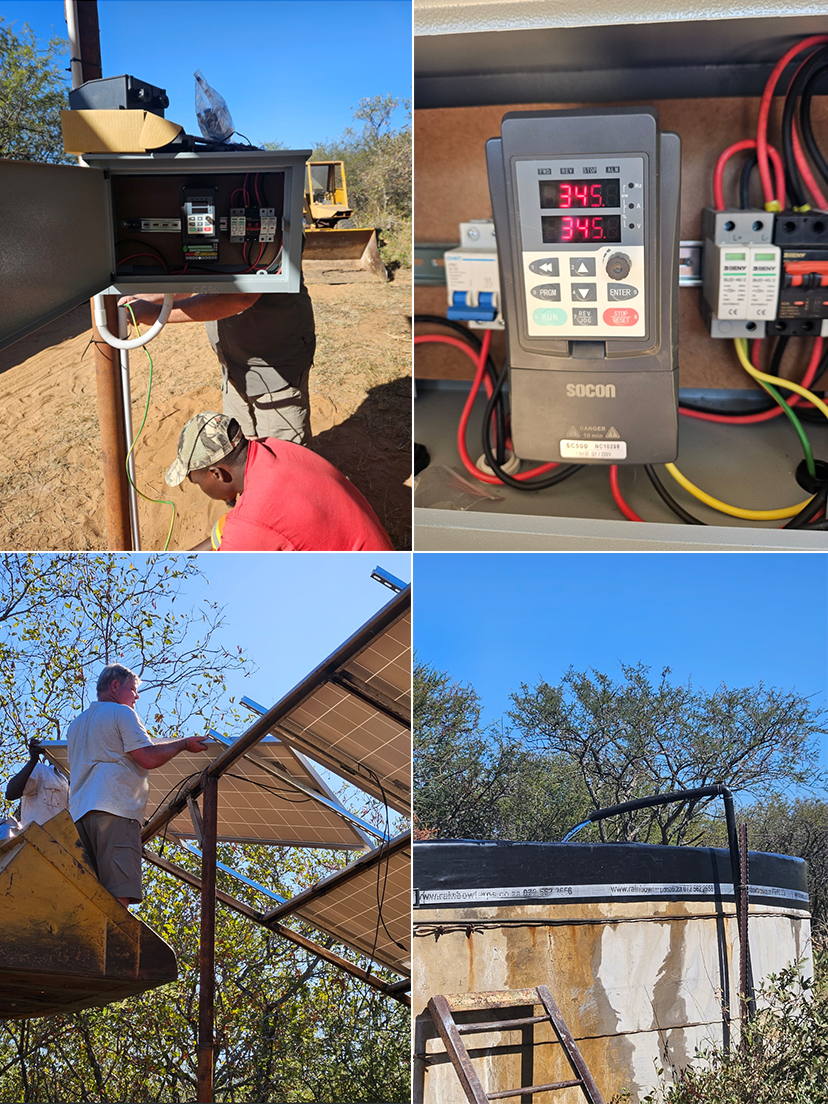

二、On-Site Project Pictures

三、Solution

Drive Model: SC500-2S-1P5G-PV

Rated Power/Current: 1.5KW/7.0A

Rated Output frequency: 0~50HZ

Solar Water Pump Power: 0.75KW/1HP

Rated Output: 220VAC 3 Phase

Solar Array: 8PCS (8pcs in series*1 groups in parallel - 330W Polycrystalline silicon solar panels)

Total Power: 2.64KW

四、Project Effect

SOCON solar pump inverter solves the problem of water storage in water towers.  It uses solar energy to run automatically during the day with no grid electricity costs.  Customers can ensure that the water tower has sufficient water, and then use water more conveniently and at any time, without having to worry about the water pump not working during normal power outages.
