Product description

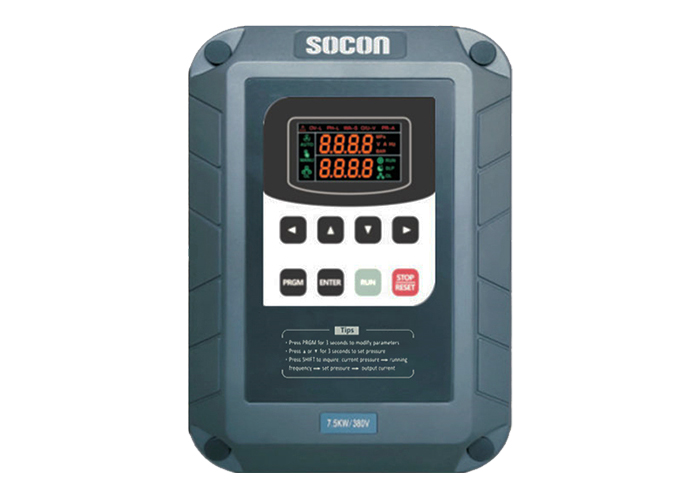

CP100B series is a backpack type constant pressure water supply VFD. This series of products has the characteristics of small size, accurate constant pressure, simple operation, stability and reliability. Widely used in fire water supply, building water supply, etc.

Product characteristics

1.Auto-Adjustment & Unattended(One key start, the system runs automatically; Automatic wake up and sleep; Automatically add or remove the pump and always maintain constant pressure; Automatically adjust the frequency of each pump to achieve the best energy saving effect.)

2.Precise pressure(built-in special PID function for water supply can realize accurate and constant pressure water supply, Rapid response to sudden change of water pressure to ensure rapid recovery of water pressure.)

3.Backpack installation(Through the adapter plate, it is directly installed on the water pump body without cabinet. The installation is fast and economical.)

4.Multiple protection(IP54 protection, Built in completed water pump,VFD and pipe network pressure protection function to ensure the long-term stable and reliable working.)

5.Intelligent anti rust and freezing(The water pump that has not worked for a long time in the water shall be working regularly to avoid the normal use of the water pump due to rust or freezing.)

6.Automatic restart(After power failure and recovery, CP100BH will automatically put into operation to ensure continuous water supply.)

7.Redundancy design(In the multi pump system, the dual master mode can be set. When one master fails and stops, the other master will automatically put into operation to ensure the continuous water supply of the system.)

8.Multi pumps rotation(The master pump and slave pump can operate alternately regularly to prolong the service life of the system.)
